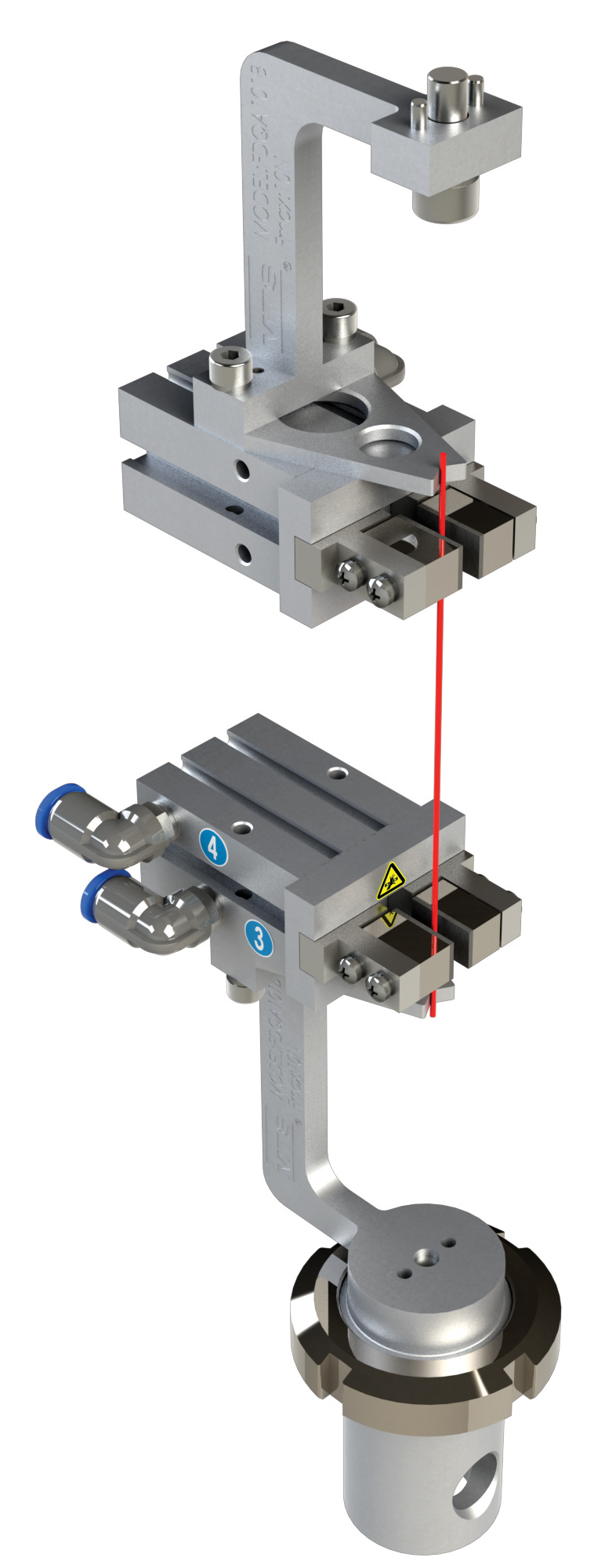

MTS Fundamental Pneumatic Vise Grips
|
|
MODEL
|
PART NUMBER |
GRIP
TYPE |
FORCE
CAPACITY |
UPPER GRIP WEIGHT
|
TEMPERATURE RATING
|
ATTACHMENT
TYPE |
COMBINED UPPER/ LOWER GRIP HEIGHT
|
GRIP
WIDTH
|
MAXIMUM INPUT PRESSURE
|
COMPATIBLE GRIP CONTROLLER TYPE
|
|
FDQA103B
|
100-231-831 |
Pneumatic
Vise |
1 kN
(225 lbf) |
1.26 kg
(2.7 lb)
|
0°C (32°F) to
50°C (122°F) |
D |
330 mm
(13 in)
|
130 mm
(5.1 in)
|
0.55 MPa
(80 PSI)
|
MTS Fundamental Dual Acting Pneumatic Grip Controller/Supply |
|
FDQA503B
|
100-279-862 |
Pneumatic
Vise |
5 kN
(1,125 lbf) |
55.48 kg
(12.1 lb)
|
0°C (32°F) to
50°C (122°F) |
D |
430 mm
(16.9 in)
|
231 mm
(9.1 in)
|
0.55 MPa
(80 PSI)
|
MTS Fundamental Single Acting Pneumatic Grip Controller/Supply |

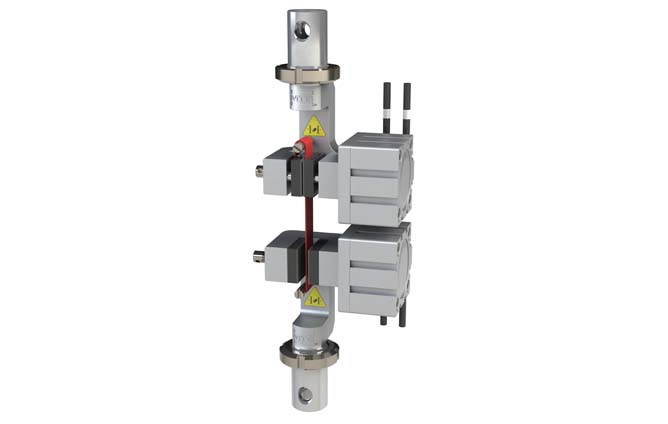

FDQA103B Integrated Specimen Interface
|
PROFILE
|
SURFACE |
HEIGHT
|
WIDTH |
SPECIMEN RANGE
|
|
Flat
|
Rubber |
30 mm (1.2 in)
|
35 mm (1.4 in) |
0-8 mm (0-0.3 in)
|
FDQA503B Optional Specimen Interface
|
MODEL
|
PART NUMBER |
PROFILE |
SURFACE
|
HEIGHT
|
WIDTH |
TEMPERATURE RATING
|
SPECIMEN RANGE
|
|
FDQA503B.01
|
100-281-153 |
Flat |
Rubber
|
50 mm (2 in) |
60 mm (2.4 in) |
0°C (32°F) to 50°C (122°F)
|
0-14 mm (0-0.55 in)
|
|
FDQA503B.02
|
100-281-154 |
Flat |
Sawtooth
|
50 mm (2 in) |
60 mm (2.4 in) |
0°C (32°F) to 50°C (122°F)
|
0-14 mm (0-0.55 in)
|
